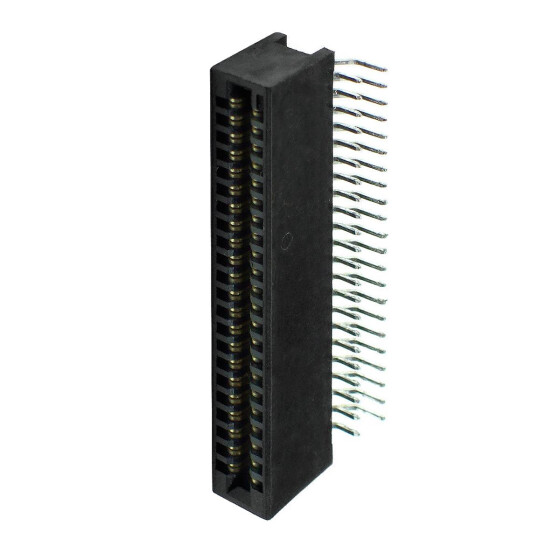

Expansionsport Connector C64 (angled)

Item number: HW0461

User Port edge connector for Commodore 64 and 128, 90 degrees angled.
  • 44 pins
  • 2.54 mm pin pitch
  • Insulator: Glass filled PBT 94v-0, Black
  • Contacts: Brass or Phosphor Bronze
  • Plating: Contact Gold plated, Dip Tin plated
  • Contact resistance: 20 mO max. at DC 100 mA
  • Insulation resistance: 1000 mO min. at 500V DC
  • Withstanding Voltage: 1000 V AC/rms 50 Hz for 1 min
  • Current rating: 2AMP
  • Operating temperature: -55 to +105 C.
  • Soldering Temperature: 260 C, 6 s max.
(Illustration similar)

Category: All Items


3,50 €

including19% VAT. , plus shipping (Warenpost)

Available now!

Shipping time: 3 - 10 workdays
