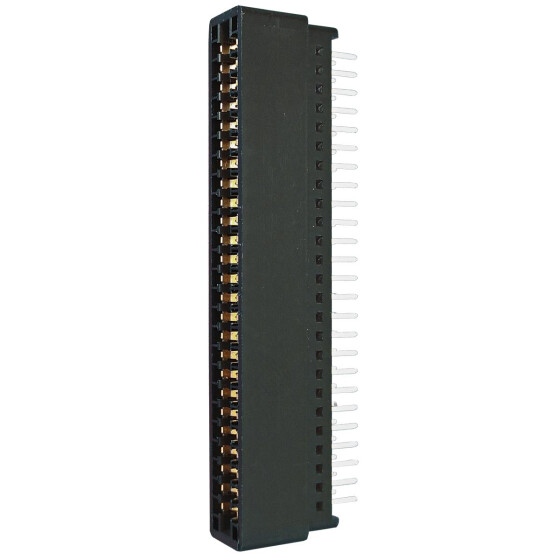

Cartridge Port Connector MSX (straight)

Cartridge Port edge connector for MSX computers and consoles.
  • 50 pins
  • 2.54 mm pin pitch
  • Insulator:Glass filled PBT 94v-0, Black
  • Contacts: Brass or Phosphor Bronze
  • Plating: Contact Gold plated, Dip Tin plated
  • Contact resistance: 20 mO max. at DC 100 mA
  • Insulation resistance: 1000 mO min. at 500V DC
  • Withstanding Voltage: 1000 V AC/rms 50 Hz for 1 min
  • Current rating: 2 AMP
  • Operating temperature: -55 to +105 °C.
  • Soldering Temperature: 260 °C, 6 s max.
(Illustration similar)
2,50 €
incl. 19% VAT , plus shipping costs
  • Currently out of stock
